SolaX Power X3 Hybrid G4 15.0-D lagernd
SolaX Power X3 Hybrid G4 15.0-D lagernd
Couldn't load pickup availability
The SolaX X3-HYBRID G4 provides seamless on-grid/off-grid switching, parallel 150 kW capability, and intelligent energy management. It perfectly integrates solar, storage, and EV charging—a Virtual Power Plant (VPP) for the future of energy.
Achieve up to 200% PV oversizing and 110% AC output to maximize solar power generation efficiency. Designed for complex loads, it supports three-phase unbalanced output of up to 5 kW per phase—perfect for dynamic demanding environments.

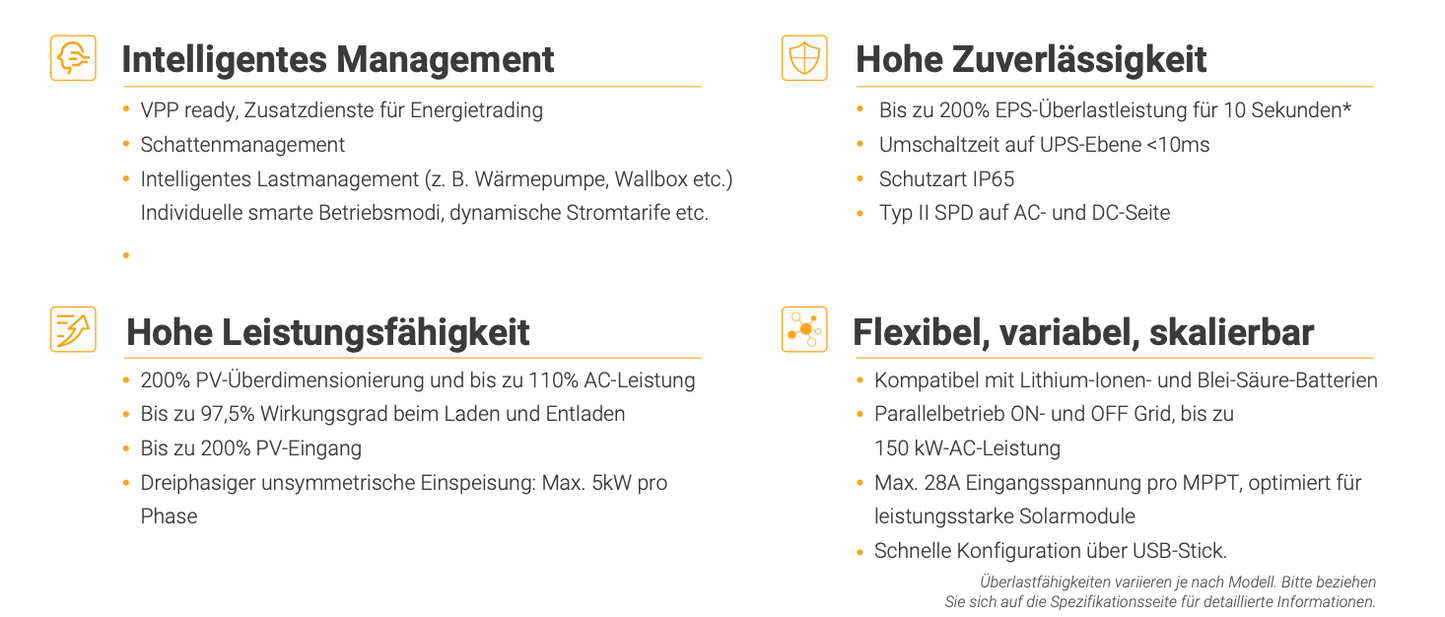

Flexible, variable, scalable
-
Compatible with lithium-ion and lead-acid batteries
-
Parallel operation ON and OFF Grid, up to 150 kW AC power
-
Max. 28A input current per MPPT, optimized for high-power solar modules
Intelligent Management
-
VPP ready, auxiliary services for energy trading
-
Shade management
-
Intelligent load management (e.g., heat pump, wallbox, etc.)
-
Individual smart operating modes, dynamic electricity tariffs, etc.
High Performance
-
200% PV oversizing and up to 110% AC power
-

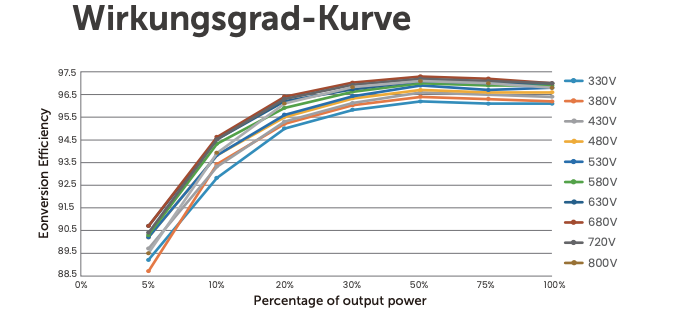

Up to 97.5% efficiency in charging and discharging
-
Up to 200% PV input
-
Three-phase unbalanced feed-in: Max. 5kW per phase
High Reliability
-
Up to 200% EPS overload power for 10 seconds*
-
UPS-level switching time <10ms
-
IP65 protection class
-
Type II SPD on AC and DC side
