Huawei LUNA2000-17kWh-S1 String Energy Storage System
Huawei LUNA2000-17kWh-S1 String Energy Storage System
Regular price
€6.799,66 EUR
Regular price
Sale price
€6.799,66 EUR
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

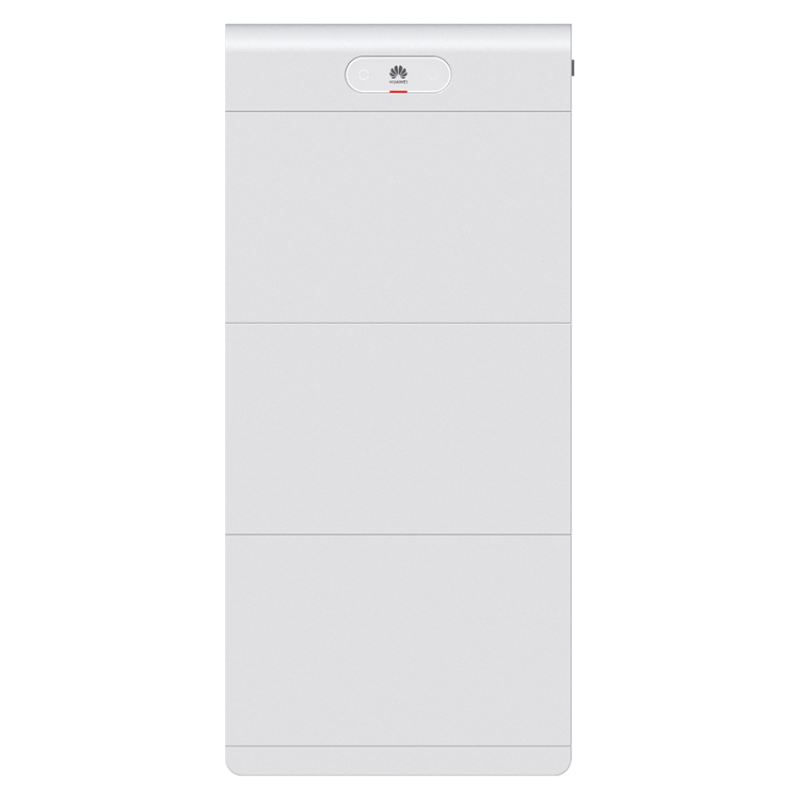

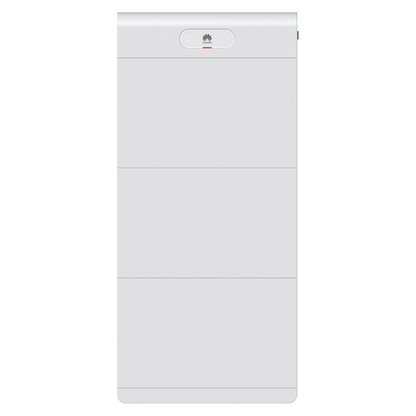

The Huawei LUNA2000-17kWh-S1 string energy storage system offers 16.9 kWh of usable energy and combines flexible scalability with maximum safety – ideal for residential and commercial installations in conjunction with Huawei SUN2000 and SUN5000 inverters.
Highlights
- Flexible Capacity – 16.9 kWh usable energy (3 × LUNA2000-5-E1 + 1 × LUNA2000-7-E1 modules), scalable up to 82.8 kWh per inverter (parallel operation up to 4 battery towers)
- More Usable Energy – LiFePO4 cell technology, 100% depth of discharge, integrated energy optimizer (Modules+ architecture)
- 5-Stage Safety Concept – IP66 protection, cell-level monitoring, high-strength housing, extinguishing device per module
- Easy Installation – Wireless connection between modules, floor stand (standard) or wall mounting (optional), fast commissioning
- Quiet Operation – Convection cooling, noise emission < 29 dB
- Clean Design – LED status indicator, compact dimensions (590 × 255 × 1,230 mm), weight 216 kg
Technical Data
| Model | LUNA2000-17-S1 |
| Battery Module | 3 × LUNA2000-5-E1 + 1 × LUNA2000-7-E1 |
| Usable Energy | 16.9 kWh |
| Max. Charge/Discharge Power | 10.5 kW |
| Cell Technology | Lithium Iron Phosphate (LiFePO4) |
| Operating Voltage | 350–560 V (1-phase) · 600–980 V (3-phase) |
| Communication | RS485 / FE / CAN |
| Protection Class | IP66 |
| Dimensions (W × D × H) | 590 × 255 × 1,230 mm |
| Weight | 216 kg |
| Operating Temperature | -20 °C to +55 °C |
| Max. Operating Altitude | 4,000 m (Derating above 2,000 m) |
| Cooling | Convection cooling |
| Noise Emission | < 29 dB |
| Installation | Floor stand (standard), wall mounting (optional) |
| Compatible Inverters | SUN2000-2/3/3.68/4/4.6/5/6KTL-L1, SUN2000-3/4/5/6/8/10KTL-M1, SUN2000-5/6/8/10/12K-MAP0, SUN2000-12/15/17/20/25K-MB0, SUN5000-3/6K-LB0, SUN5000-8/12K-MAP0, SUN5000-17/25K-MB0 |
| Certificates | CE, RCM, CEC, VDE2510-50, IEC62619, IEC60730, UN38.3, ISO13849, REACH, RoHS |
