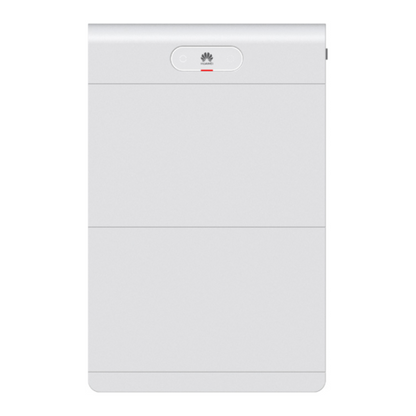

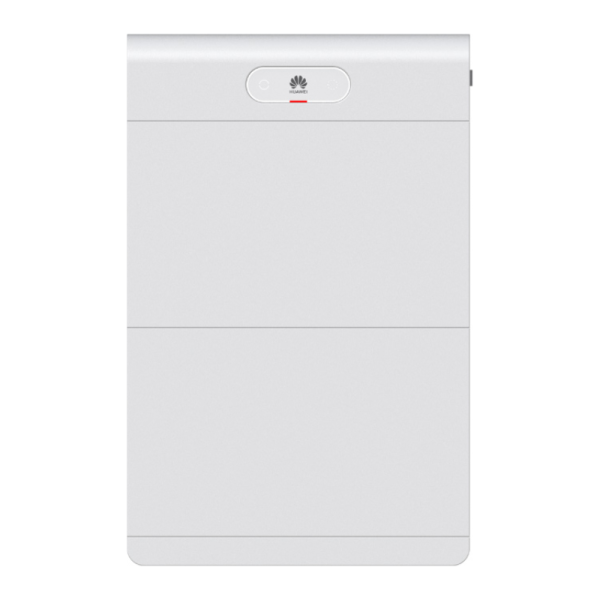

Huawei LUNA2000-10kWh-S1 String Energy Storage System

Huawei LUNA2000-10kWh-S1 String Energy Storage System

€4.419,66 EUR
€4.419,66 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.

The Huawei LUNA2000-10kWh-S1 string energy storage system offers 10 kWh of usable energy and combines flexible scalability with maximum safety – ideal for residential and commercial installations in combination with Huawei SUN2000 and SUN5000 inverters.

Highlights

  • Flexible Capacity – 10 kWh usable energy (2 × LUNA2000-5-E1 modules), scalable up to 82.8 kWh per inverter (parallel operation of up to 4 battery towers)
  • More Usable Energy – LiFePO4 cell technology, 100% depth of discharge, integrated energy optimizer (Module+ architecture)
  • 5-Level Safety Concept – IP66 protection, cell-level monitoring, high-strength housing, extinguishing device per module
  • Easy Installation – Wireless connection between modules, floor standing (standard) or wall mounting (optional), quick commissioning
  • Quiet Operation – Convection cooling, noise emission < 29 dB
  • Clean Design – LED status indicator, compact dimensions (590 × 255 × 870 mm), weight 148 kg

Technical Data

Model LUNA2000-10-S1
Battery Module 2 × LUNA2000-5-E1
Usable Energy 10 kWh
Max. Charge/Discharge Power 7 kW
Cell Technology Lithium Iron Phosphate (LiFePO4)
Operating Voltage 350–560 V (1-phase) · 600–980 V (3-phase)
Communication RS485 / FE / CAN
Protection Class IP66
Dimensions (W × D × H) 590 × 255 × 870 mm
Weight 148 kg
Operating Temperature -20 °C to +55 °C
Max. Operating Altitude 4,000 m (derating above 2,000 m)
Cooling Convection Cooling
Noise Emission < 29 dB
Installation Floor standing (standard), Wall mounting (optional)
Compatible Inverters SUN2000-2/3/3.68/4/4.6/5/6KTL-L1, SUN2000-3/4/5/6/8/10KTL-M1, SUN2000-5/6/8/10/12K-MAP0, SUN2000-12/15/17/20/25K-MB0, SUN5000-3/6K-LB0, SUN5000-8/12K-MAP0, SUN5000-17/25K-MB0
Certificates CE, RCM, CEC, VDE2510-50, IEC62619, IEC60730, UN38.3, ISO13849, REACH, RoHS
