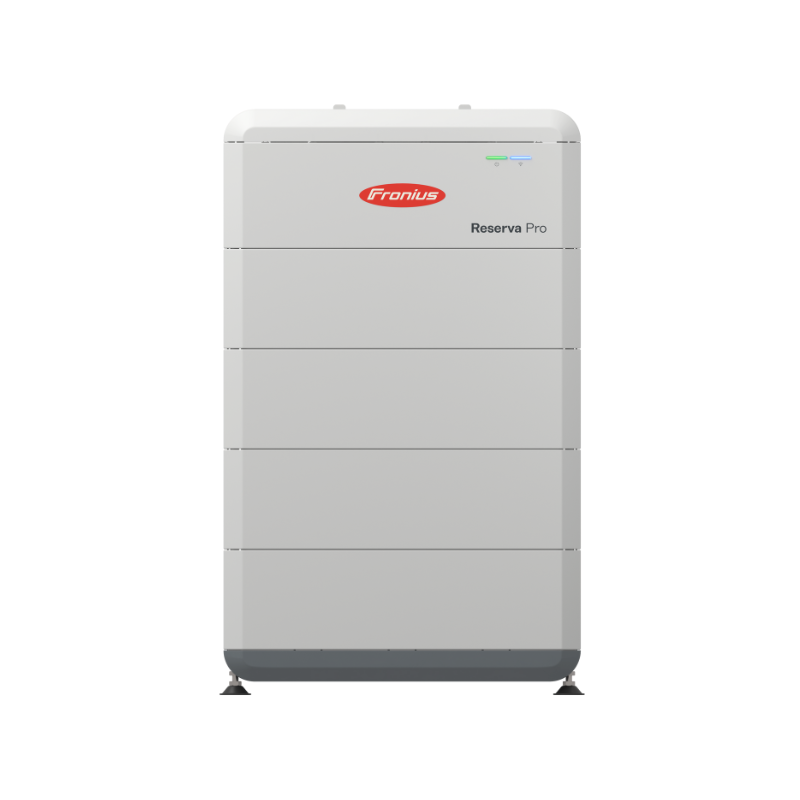

Fronius Reserva Pro 16.0

The Fronius Reserva Pro is the core of a future-proof energy system for maximum independence and high self-consumption. The DC-coupled high-voltage battery with durable and safe LFP cells offers high charge/discharge power, maximum efficiency, and a 10-year warranty. Protection against overcharging and deep discharge, as well as strict safety tests, ensure maximum operational safety. Thanks to European manufacturing, it is eligible for regional funding programs such as the "Made in Europe Bonus".

Whether for large residential buildings, agriculture, or commercial use – the Reserva Pro reliably delivers energy in precisely the amount you need and effortlessly grows with your requirements.

Product Advantages:

• Complete package 16.0 – 4 battery modules plus BMS and bases
• Wireless stacking concept – compact, clean and easy to assemble
• Flexibly scalable – 12 to 32 kWh per tower, up to 128 kWh with 4 towers in parallel
• Up to 127.6 kWh total capacity with maximum expansion
• Certified battery safety according to VDE 2510-50
• Everything from a single source – perfectly matched to Fronius GEN24 Plus and Verto Plus
• Durable LFP technology for a sustainable, safe investment

Technical Specifications:

• Usable battery capacity: 16.0 kWh (4 modules)
• Storage type: High-voltage | DC nominal voltage: 212.52 V
• DC charging current: 50 A
• Modules per unit: 3 to 8 | Units in parallel: up to 4
• Cell chemistry: LFP | Communication: RS485
• Protection class: IP65
• Dimensions (H × W × D): 760 x 579 × 440 mm
• Weight: BMS + base approx. 13.5 kg; per module approx. 36.0 kg;

Compatibility: Fronius GEN24 Plus, Fronius Verto Plus

The Fronius Reserva Pro – European quality for long-term energy independence.
